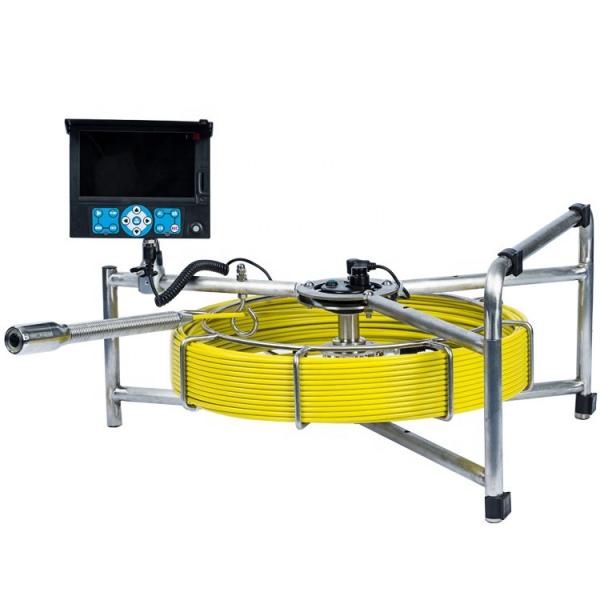

These units feature a self leveling camera head which view and capture every detail of your inspection. The camera head features a compact (38mm dia) detachable design which is completely waterproof(IP68) and contains 12pcs super bright adjustable LED lights to provide consistent illumination.

The light intensity can be easily controlled to avoid flaring, and the sensitive CCD chip is protected by a thick scratch-proof sapphire glass.

The 7” LCD color screen with control panel with video and image capture of your inspections saved directly to any SD memory card. And the state-of-the-art battery packs provide 5hours of continuous operation.

Included in the set is 2 specially designed centering roller skids, to ensure that the camera is placed directly in the center of the pipe. Optional cable lengths for the push rod range from 40 meters to 60 meters. Meter/foot counter shows the cable length which you push into pipe on the screen.

English Keyboard, text input shows on the screen and can be keep in the video when recording.

The 512Hz sonde(transmitter): The 512Hz sonde transmitter built-in the camera head for location, it can work with any receiver that can receive 512Hz.

The lightweight, waterproof case combines camera, monitor, accessories in an all-in-one package. Seperated pack the reel, that will not dirty the main machine. You get a large 7” LCD color monitor that swivels to give you the best viewing angle, wherever you’re working.

The purpose of a sewer camera is to be able to see what’s causing a blockage or backup within the sewer pipe without digging up the yard or just guessing what the problem is. Because sewer repairs and pipe replacements are no small task, this helps homeowners avoid expensive repairs without knowing for certain that their problem will be solved when the work is done.
A tiny, flexible sewer camera is attached to a snake-like cable that plumbers feed through the sewer pipe until it reaches the cause of the clog (or break in the line). A radio transmitter on the camera records the physical location of the line and depth from the surface, telling the plumber where the blockage is and what work needs to be done to fix it.

Application:

1. Easy to move and operate.

2. The push camera is suitable for Diameter of 50-300mm sewer pipes.

3. The Push Camera is a great tool for the inspection of sewer pipes, drain, vessels, tanks and pipe walls.

4. It supports video & audio record, picture snap, LED adjust, meter / foot count, text edit, built-in 512Hz sonde for location and waterproof IP 68(it can work underwater 20m depth).

5. Night language system (English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese)

Key Features of Sewer Camera:

- 1/3" Sony CCD camera, 120°wide vision angle, 752H * 582V pixels
- Camera Size Φ38mm×81mm(main body)
- With self-leveling feature
- Two roller skids, mini one at dia.72mm, another universal skid at dia.115-250mm
- Diameter of camera: 38mm, Focus Distance 12cm (approx)
- Water proof level, 20m underwater (camera fix on cable)
- SD Card slot to store still pictures or videos
- LED brightness control buttons
- Built-in rechargeable battery lasts up to 5 hours
- On-screen meter/ft. distance display
- Built-in 512hz sonde(optional)
- With universal installation brackets

Specifications:

Packing&Shipping
